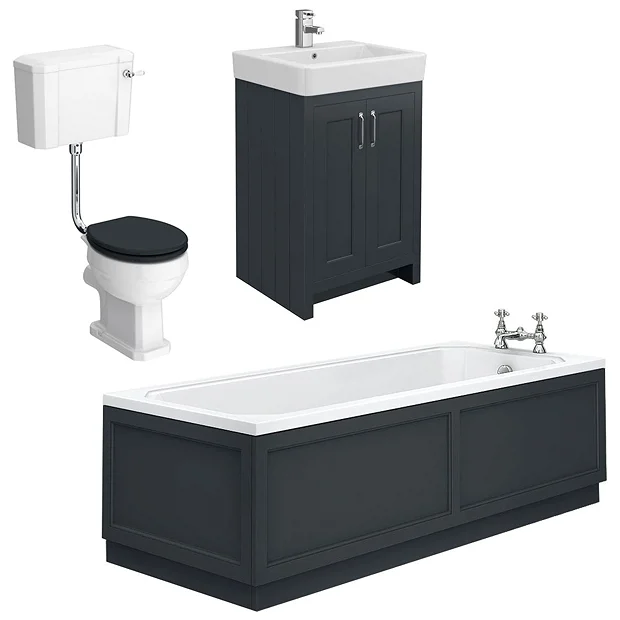

Chatsworth Graphite Bathroom Suite Incl. 1700 X 700 Bath With Panels

Chatsworth Graphite Bathroom Suite incl. 1700 x 700 Bath with Panels

A high-quality traditional bathroom suite with a satin graphite finish from the Chatsworth range, ideal for creating a period look in your bathroom.

Manufactured to a high standard, the stylish vanity unit features a internal shelf which provides generous storage space for your toiletries, helping to keep your bathroom clutter free.

It’s clean classical design blends beautifully with the Art Deco styled acrylic bathtub, comes with a pre-drilled waste and overflow holes, and also includes a set of bath legs. Each bath panel comes with a plinth to attach to the bottom of the panel to raise your bath an extra 150mm.

The traditional low level toilet with seat features quick release hinges for easy cleaning. Toilet has been manufactured using high-grade vitreous china ensuring a quality finish and long lasting durability.

Toilet Details

• Height: 1100mm
• Width: 474mm
• Product Type: Low level toilet
• Material: Ceramic
• Colour/Finish: Gloss White & Chrome
• Seat Finish: Satin Graphite
• Style: Traditional
• Range: Chatsworth
• High-quality design and build
• Supplied with ceramic lever & chrome low level flush pipe kit
• Seat has adjustable brushed chrome top-fixing hinges with quick release button for easy cleaning.
• Soft-closing hinges allow for controlled and quiet closure of the seat lid and ring.

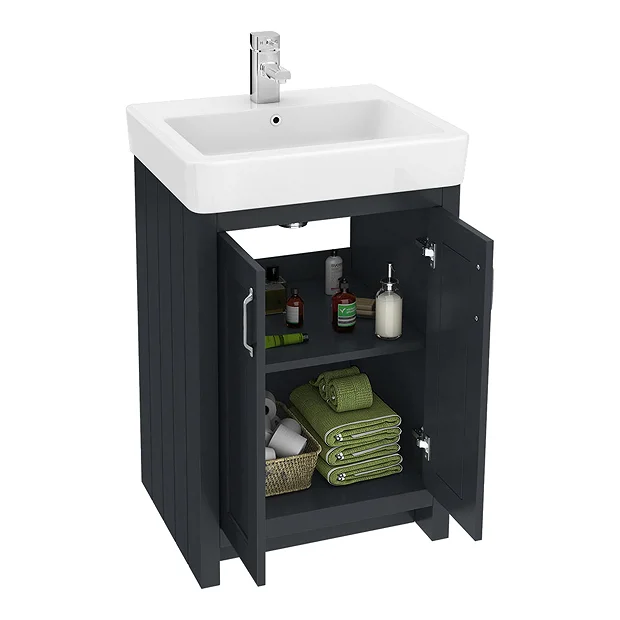

Vanity Details

• Width: 560mm
• Height: 850mm
• Depth: 460mm
• Colour: Satin Graphite
• Material: MDF / Ceramic
• Style: Traditional
• Type: Vanity unit inc basin
• Tap Holes: 1
• Simple & sophisticated design
• Free-standing Unit
• 1 Adjustable shelf
• Polished chrome finished handles
• Fully assembled cabinet
• Panel detailing
• 2 Soft-closing doors to prevent slamming
• Supplied with high-grade gloss white ceramic basin
• With overflow
• Floor Standing Units must be fitted back to wall through the backrail using suitable fixings (not included)

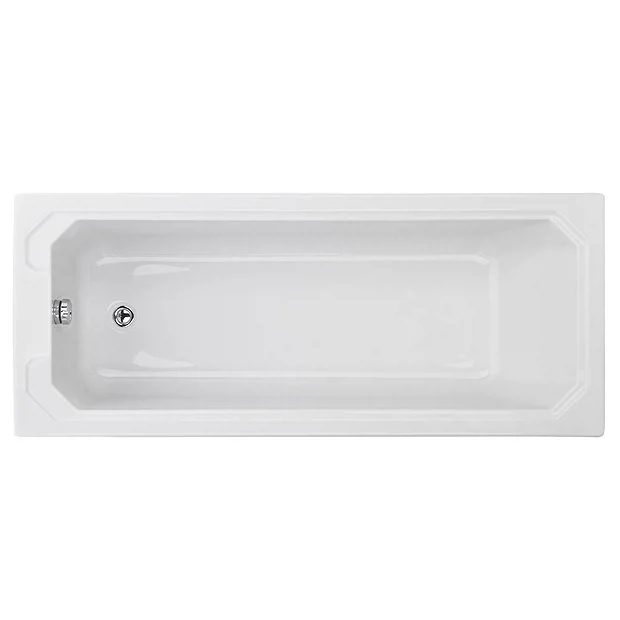

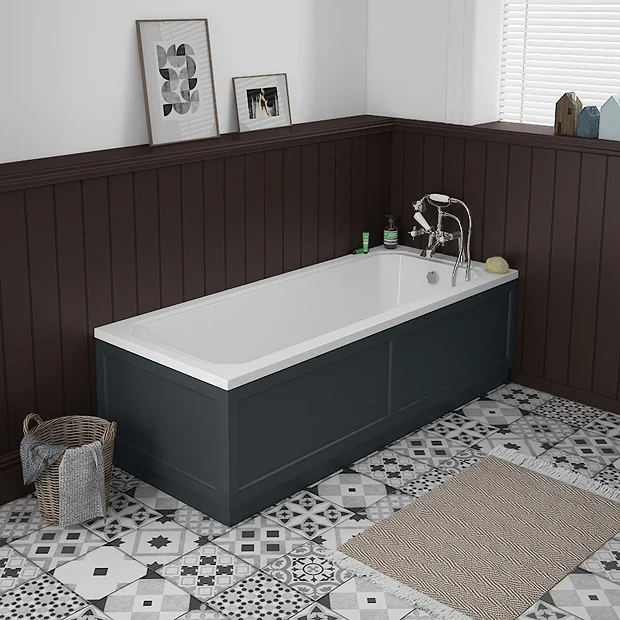

Bath Details

• Size: 1700 x 700mm
• Height of bath including legs: 550mm
• Type: Single ended bath
• Tap Holes: 0
• Material: High grade acrylic
• Waste and overflow holes are pre-drilled
• Bath legs set and fitting pack included
• Tap mounting – End of bath (above overflow)

Panel Details

• Front Panel: 1700mm
• End Panel: 700mm
• Thickness: 18mm
• Adjustable Height: 400/530mm
• Type: Bath Panels with Plinth
• Colour: Satin Graphite
• Material: MDF
• Style: Traditional
• Water-Resistant
• High Quality Painted Finish
• Panel Detailing
• Does not include fixings

Bath supplied with no tap holes pre-drilled, though this is easily and regularly done by your installer/plumber to suit your individual needs.

Guarantee: 5 Year (seat guaranteed for 1 year)

Please Note: Unit and bath panels are water resistant, but not waterproof. All spillages and splashes should be wiped dry, failure to do so may shorten the life expectancy of the product and invalidate any guarantees.

Images are for illustrative purposes.

Tap + Waste not included

Comprises

(1) Chatsworth W525mm 2 Door Graphite Basin Unit

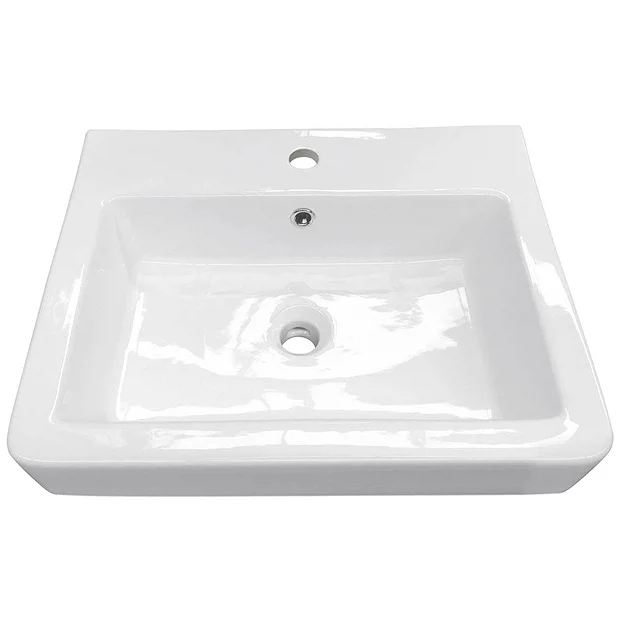

(1) Chatsworth W560 x D460mm 1TH Ceramic Basin
(1) High/Low Level Pan
(1) Low Level Cistern with Ceramic Lever (inc’ Fittings)
(1) Chatsworth Soft Close Graphite Seat
(1) Chrome Low Level Pipe Pack
(1) 1700 x 700mm Art Deco Single Ended Bath + Legset
(1) 1700mm Graphite Front Bath Panel with Plinth
(1) 700mm Graphite End Bath Panel with Plinth
